New Website Features¶
More graphs, map tweak, laps, and filtering insight
Overview¶
Graphs
- RxStationCount
- SpotCountByDate
- RxDistance Histogram
- Scatter Plot lets you compare any series against another
Summary
- Lap Counter
Map
- Highlight of latest
Filtering
- Row-by-row filter data under Pro (under Data Table Controls)
- Flight-wide filter breakdown under Data Table
Graphs¶
RxStationCount¶
For a given transmission window (row), how many unique stations heard data matched to you within that row?
SpotCountByDate¶
How many spots (rows), by Date, were received?
RxDistance Histogram¶
For the whole flight, what how far away were receiving stations? This histogram shows. Calculated by taking the set of unique stations hearing your data within each transmission window (row).
Scatter Plot¶
Compare any data set vs another data set (eg Solar Angle vs RX Station Count, or Temperature vs Voltage).
All series work, including Extended Telemetry.
Summary¶

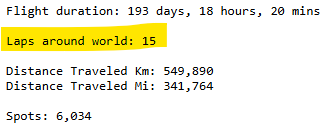

Summary now includes lap count.
Map¶
The latest spot is now circled again.
Filtering¶
Row-by-row filter data under Pro (under Data Table Controls)¶

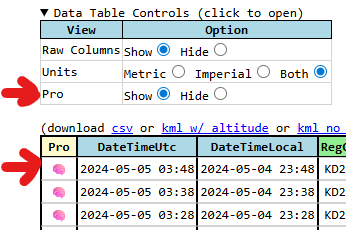

Enable Pro Row Insights using the Data Table Controls.

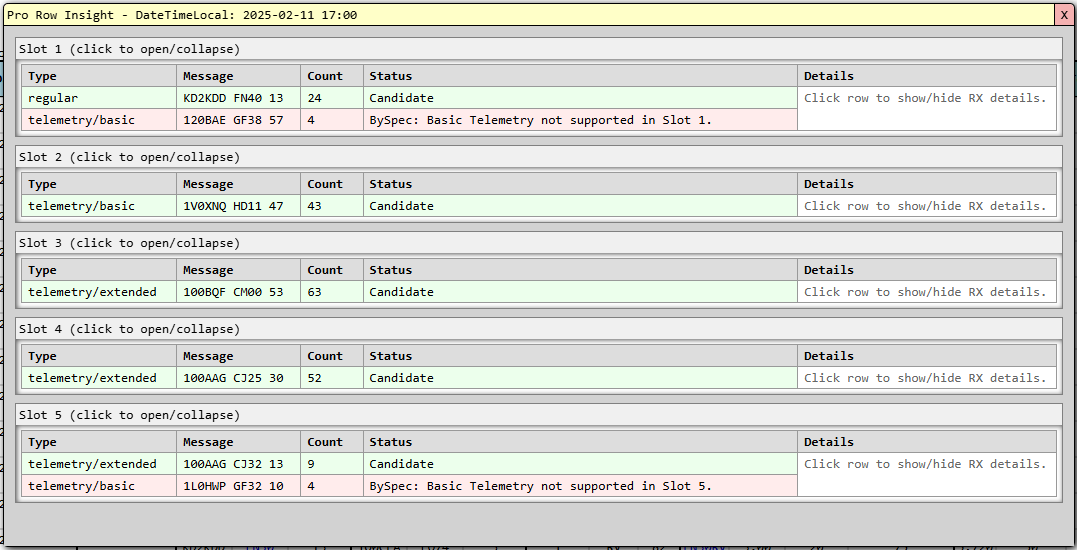

For any Row, click the emoji and investigate the source of data and filtering decisions. Hit escape to close, or use X. Open as many popups as desired.
See what data was filtered or selected by slot.
Expand (or close) the list of receiving stations for a given message by clicking the row.
Flight-wide filter breakdown under Data Table¶

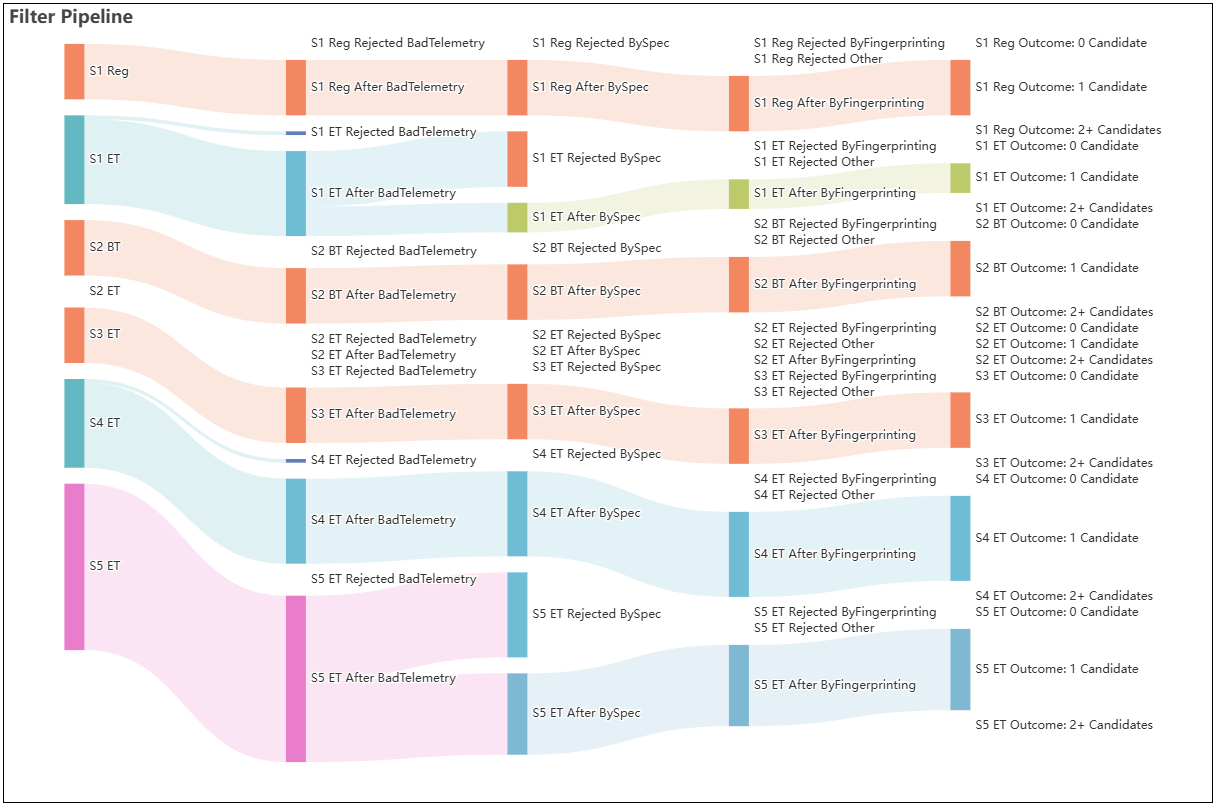

Filter action and outcomes captured both in text and flow diagram form.
